Universal Digital Voltmeter and Kit

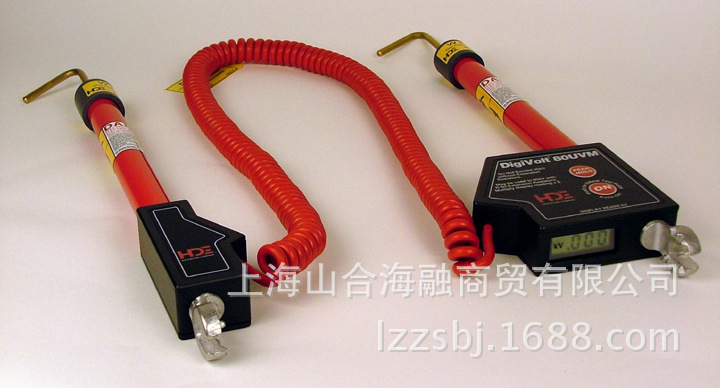

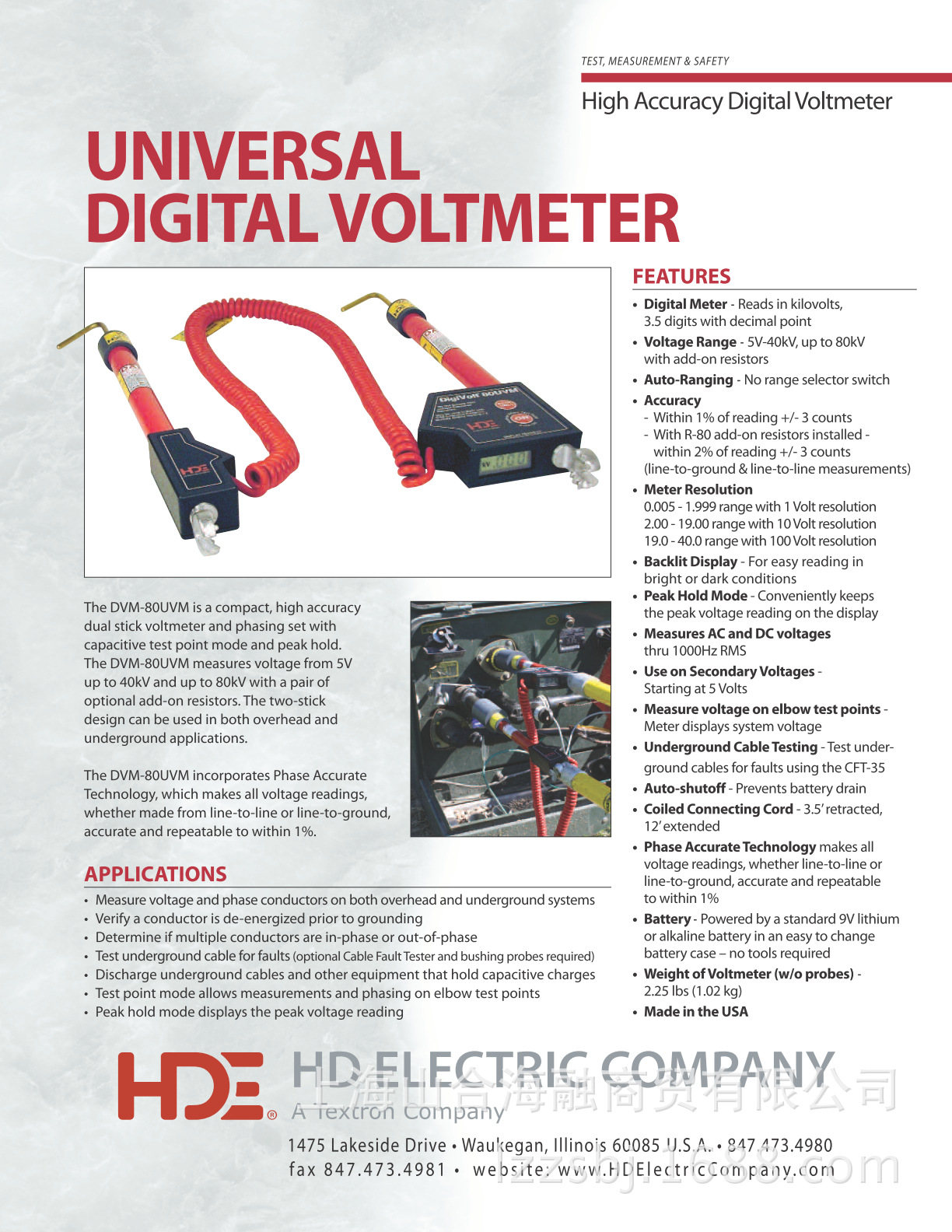

The DigiVolt? series of digital voltmeters and phasing sets is designed to take voltage measurements and perform phasing applications on system voltages up to 80kV.  The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. The DVM-80UVM measures voltage from 5V up to 40kV and up to 80kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications. The DVM-80 units incorporate Phase Accurate Technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%.

The DVM-80UVM is available in a Universal Voltmeter Kit.  We have packaged it with an assembly of accessories, offering it as a complete, ready-to-use Universal Voltmeter Kit.  Priced competitively as a complete kit, this may be the best value in the market today.

Features and Benefits

·         Peak Hold mode

·         Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV

·         Highly accurate, within 1% of the reading

·         Backlit display for easy reading in bright or dark conditions

·         Measures AC and DC voltages

·         Use on secondary voltages, starting at 5 Volts

·         Measure voltage on elbow test points, meter will display the system voltage

·         Test underground cables for faults

·         Auto shut-off

·         Powered by a 9V lithium or alkaline battery in an easy to change battery case - no tools required

·         Voltmeter weights 2.25 lbs.

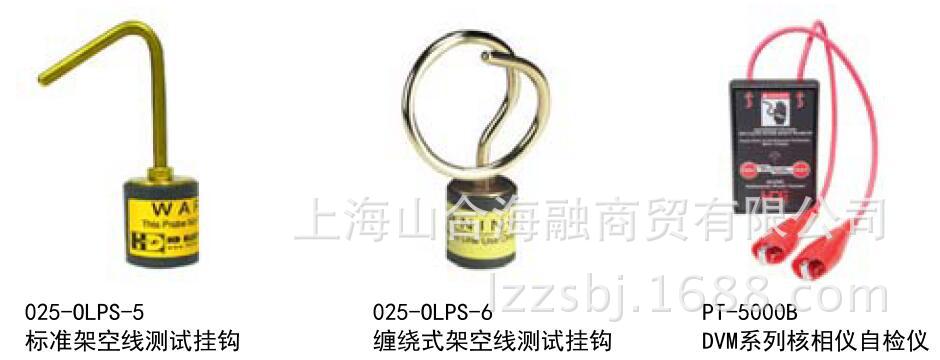

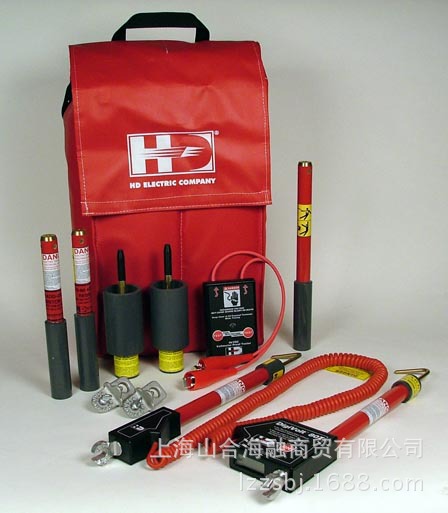

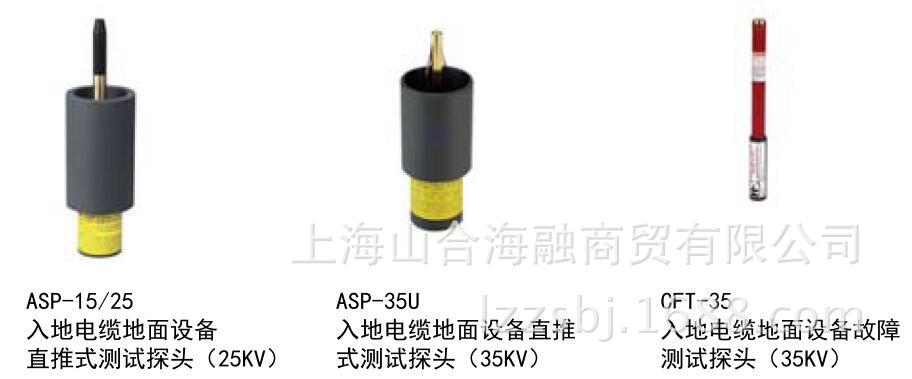

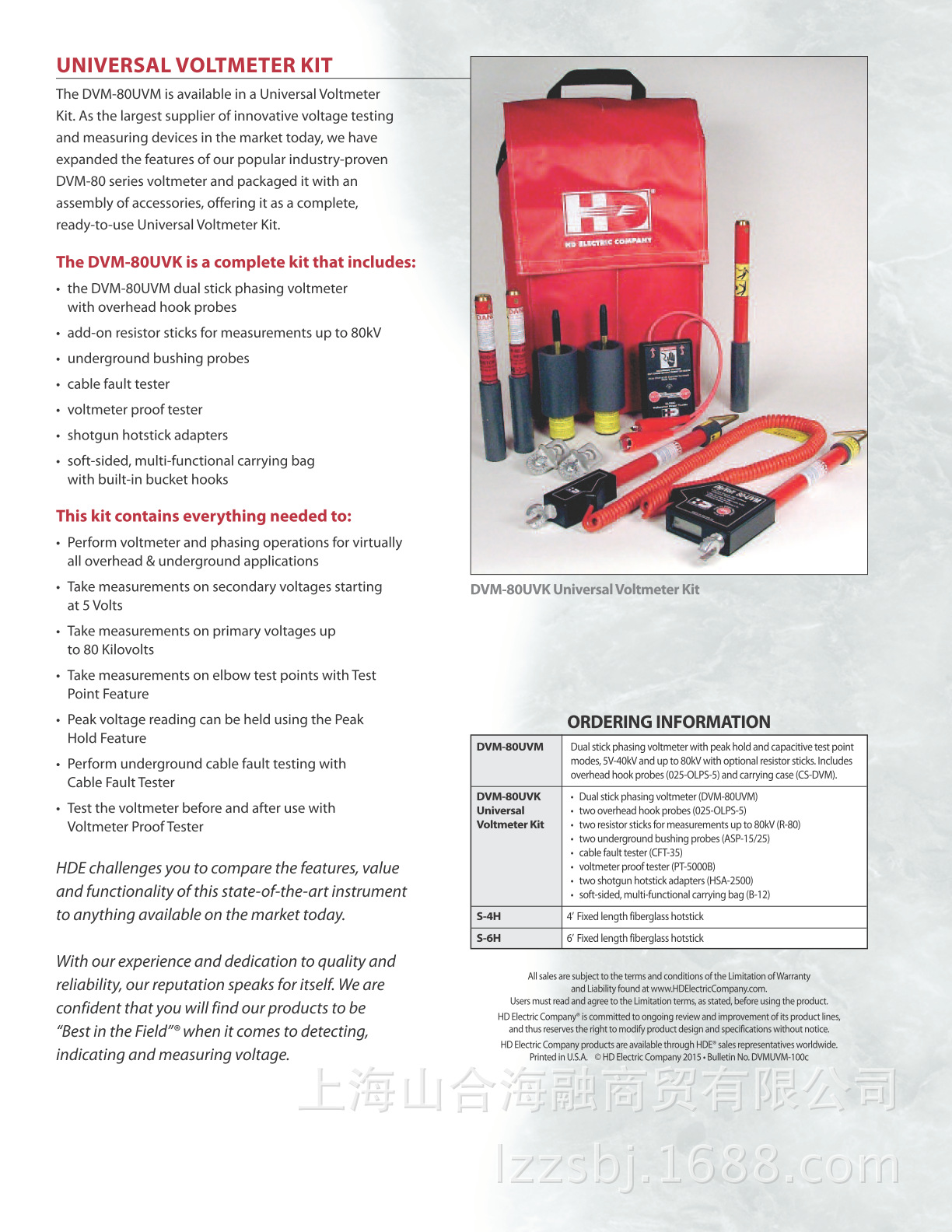

The DVM-80UVK is a complete kit that includes the DVM-80UVM dual stick phasing voltmeter with overhead hook probes, add-on resistor sticks for measurements up to 80kV, underground bushing probes, cable fault tester, voltmeter proof tester, shotgun hotstick adapters and a soft-sided, multi-functional carrying bag with built-in bucket hooks.

This kit contains everything needed to:

·         Perform voltmeter and phasing operations for virtually all overhead & underground applications

·         Take measurements on secondary voltages starting at 5 Volts

·         Take measurements on primary voltages up to 80 Kilovolts

·         Take measurements on elbow test points with Test Point Feature

·         Peak voltage reading can be held using the new Peak Hold Feature

·         Perform underground cable fault testing with Cable Fault Tester

·         Test the voltmeter before and after use with Voltmeter Proof Tester

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

DVM系列多功能核相儀
DVM系列多功能核相儀具有體積小巧，便于攜帶，測量
精度高，支持有線/無線核相等特點。設有電容測試點
模式，具有峰值保持功能�？蓽y電壓為5V-40KV。雙探
頭設計使產品既可用于架空線路測量，也可用于入地電
纜地面設備測量，同時保證電壓測量以及核相工作的穩
定和準確。
DVM系列包含以下產品型號：
DVM-80UVM便攜型多功能核相儀
DDVM-40大屏幕多功能核相儀
DDPM-40大屏幕多功能無線核相儀
產品特點：
三位半數字顯示
背光顯示屏，強光或弱光環境下均可輕松讀數
可測電壓為40KV
電壓測量精度為1%
適用于架空線路和入地電纜地面設備
可配合標準絕緣桿使用

DVM 系列多功能核相儀參數表

DVM 系列多功能核相儀選型指南

DVM系列多功能核相儀配件
