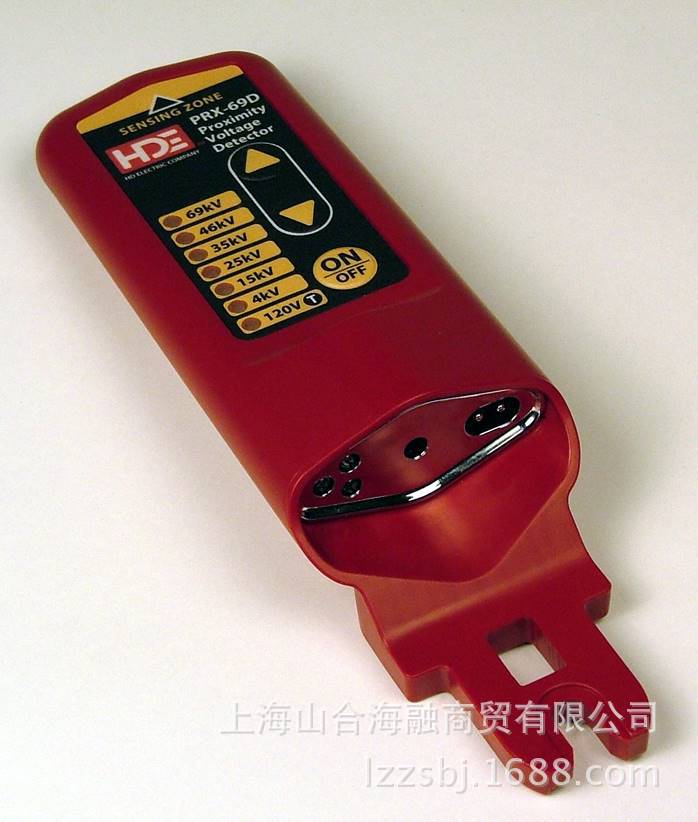

Proximity Voltage Detector

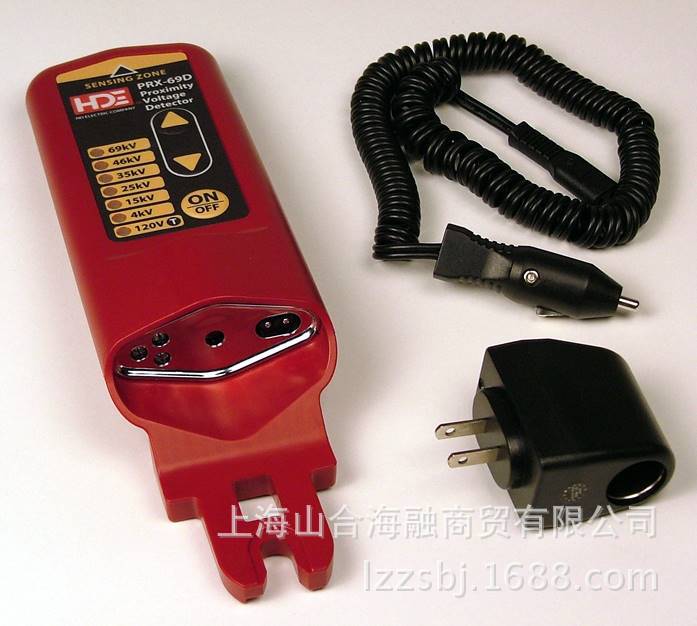

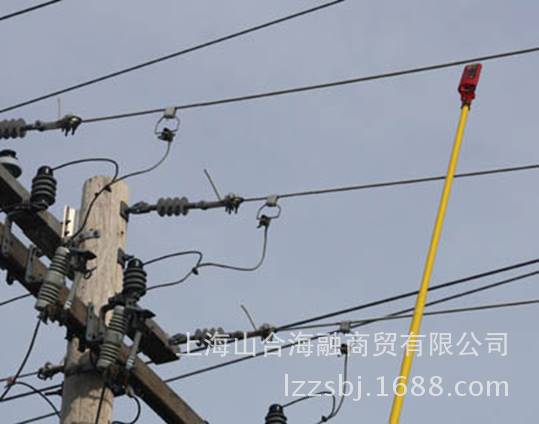

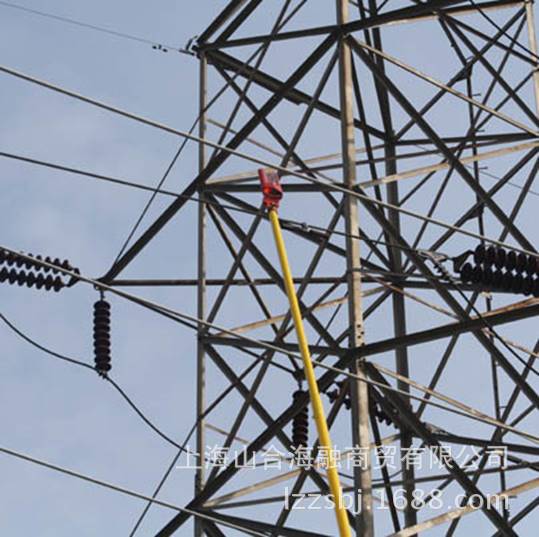

The PRX-69D Proximity Voltage Detector is a non-contact detector with seven standard voltage ranges from 120V to 69kV.  When voltage is detected, the PRX-69D gives an audible and visual indication with a typical detection distance of 10 inches.  The PRX has the ability to detect voltage on most elbow test points at the 120V setting. With a rechargeable internal battery, the PRX can be charged quickly from 12VDC automotive outlets or from 115-240VAC.

The rechargeable battery sealed inside the PRX-69D is a lithium-ion type, the same battery typically used in smart phones and other portable electronics.  It is however, substantially larger in capacity resulting in much longer life for the PRX. Internal circuitry prevents overcharging and protects the battery from excessive temperatures.  The battery is sealed inside the device, providing maximum protection. Other key features of the PRX battery system are:

·         If the battery is low, a quick 15 minute charge provides over one full day of use

·         PRX battery life on a full charge is one week of continuous use

·         A full charge takes only three hours

Proximity Voltage Detector Features

·         Seven standard voltage ranges from 120V up to 69kV

·         Detects voltage on most elbow test points

·         Detects voltages 10" (25 cm) or greater from the source

·         Rechargeable battery with quick recharge - 15 minutes for a full day of use

·         Heartbeat signal assures that the PRX is ready to detect voltage

·         Rugged, durable housing

·         Dual hotstick connections - universal spline and shotgun stick

·         Loud beeper and LED lights indicate voltage

·         Weighs less than 1 pound (0.45 kg)

·         Easy to use electronic touch pad with large buttons

·         Custom voltage ranges available upon request

·         Can be used on 50Hz and 60Hz systems

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

PRX系列非接觸式驗電器
PRX系列非接觸式驗電器體積輕巧，便于攜帶。無需接觸帶電導體即可達到驗電功能，在現場作業尤其是需要連接長距離絕緣桿時，便于作業人員輕松作業。同時，每款PRX產品均有若干個電壓量程，可以由用戶自行選擇需要檢驗的電壓。該系列驗電器已經獲得中國電力科學研究院電力工業電氣設備質量檢驗測試中心認證，安全性能，電氣性能以及驗電功能均符合國家相關標準。

PRX系列包含以下型號：
PRX-500（最高量程500KV）
PRX-69D（最高量程69KV）
PRX-35D（最高量程35KV）
PRX-4（4KV以下和4KV以上，自動量程）

產品特點：
多量程電壓選擇
聲光報警指示電壓
可用于50/60Hz電力系統
快速充電，充電15分鐘保證一天使用

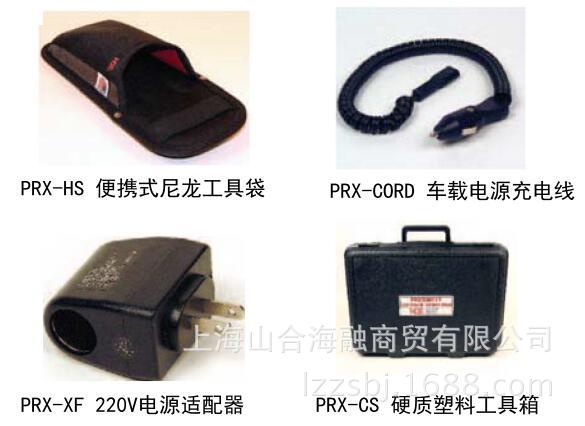

可通過市電或車載電源充電
可配合標準絕緣桿使用

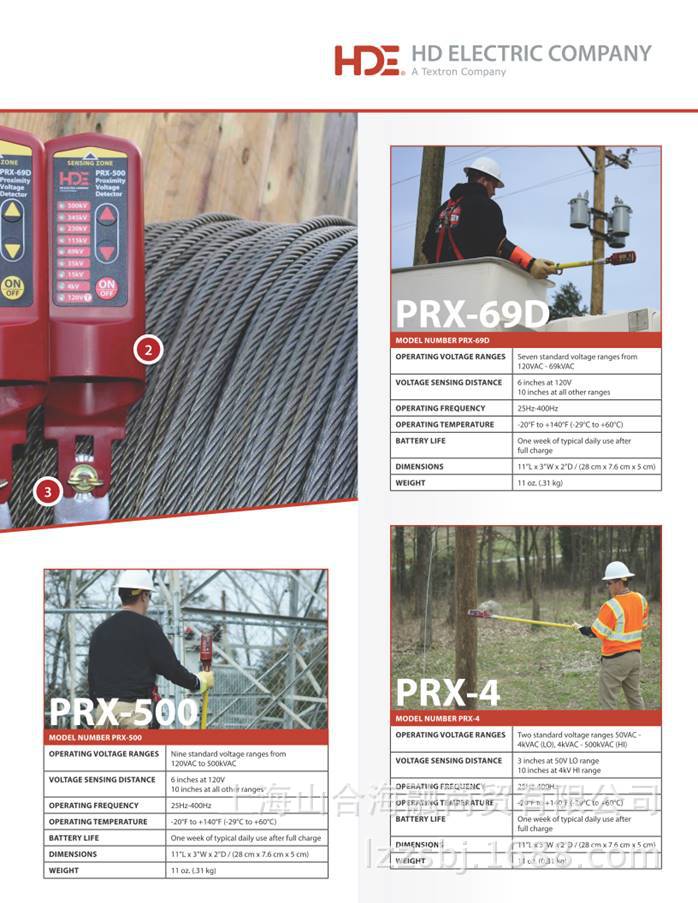

PRX非接觸式驗電器參數表

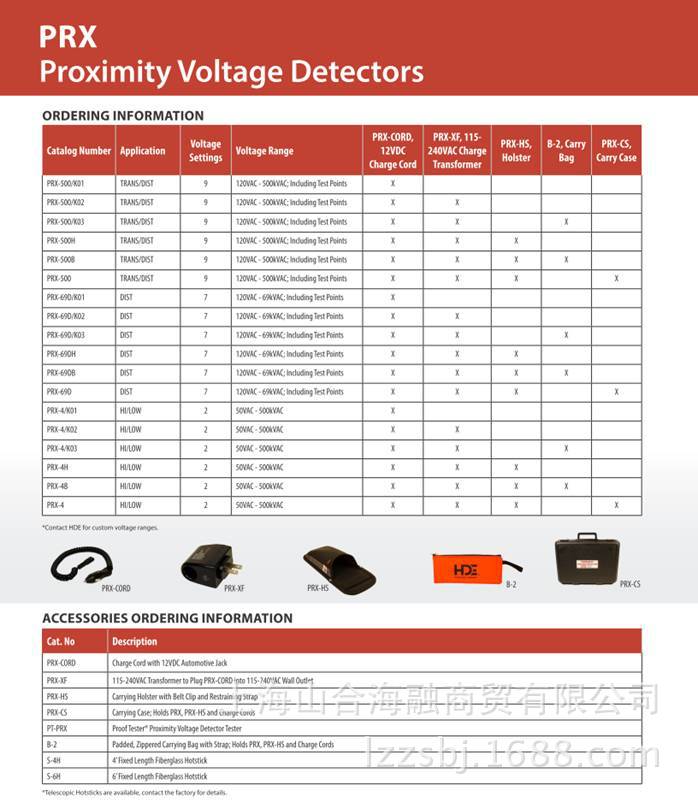

PRX非接觸式驗電器選型表
