石材雕刻機價格|數控墓碑雕刻機多少錢

廠家熱線：15621861266（微信） QQ：2986418693 聯系人：李經理

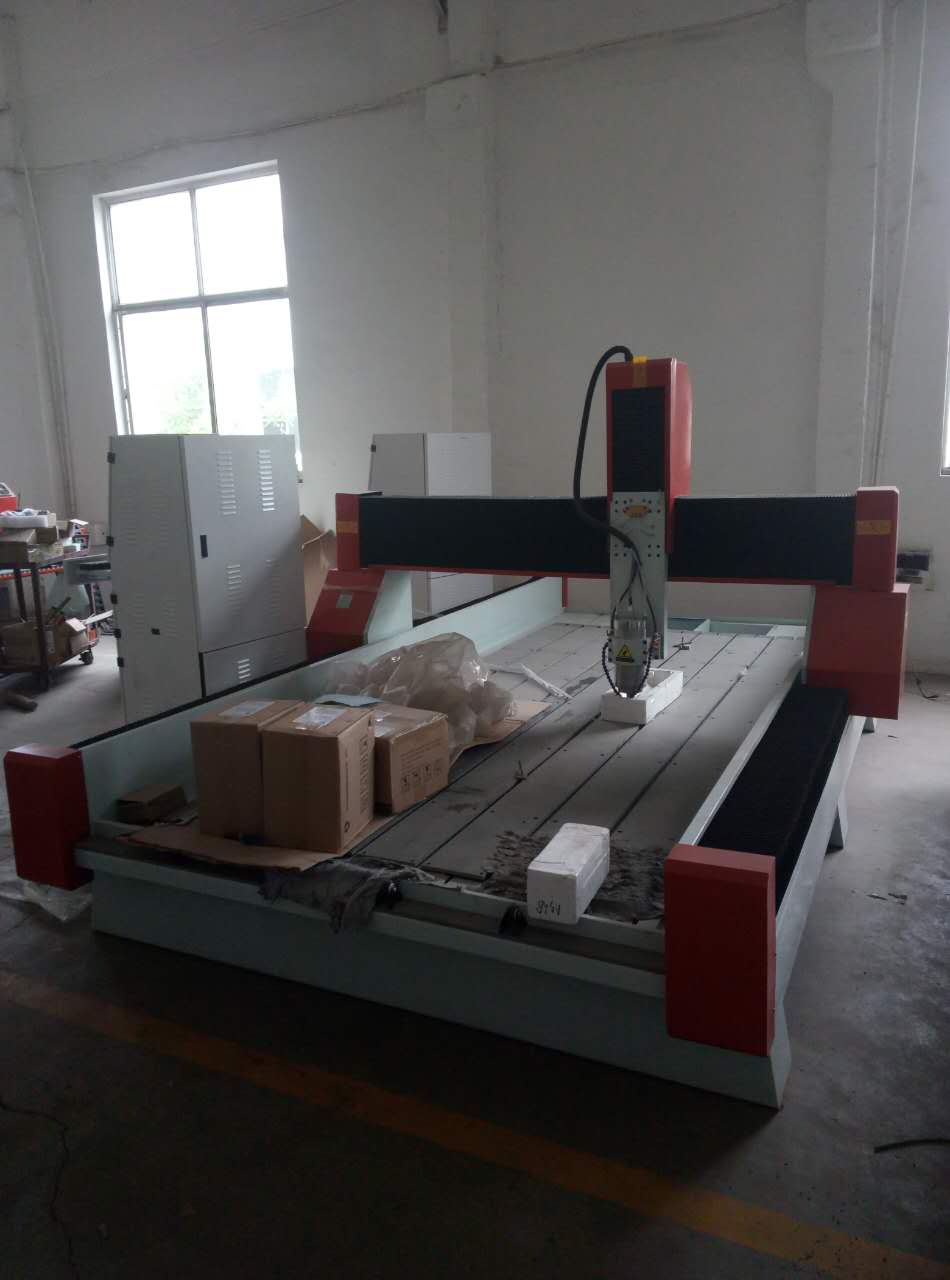

TM-1325型號石材雕刻機性能特點：

1,床體鋼結構厚壁方管焊接,經振動時效處理,堅固耐用,不易變形。既可以加工各種石材,也可以加工木材。

2,采用臺灣高精度方軌,z軸采用臺灣產滾珠絲杠,y軸采用高精度斜齒齒條,嚙合度高,精度高。

3,軟件兼容性強,可兼容type3/artcam/文泰等多種CAD/CAM設計制作軟件。

4,擁有斷電記憶功能,可在斷電,斷刀等突然情況下,接上次工作繼續進行,加工時間預測等功能,真人的人性設計。

5,DSP手柄控制,任意讀取加工數據,加工過程完全脫機,不占用電腦資源。

6,有水冷卻刀具系統和排水槽。

7,防塵罩設計,防塵防水,保護部件。

適用行業：

石材類：天然大理石,花崗巖,人造石,墓碑,里程碑,瓷磚,玻璃等材料的三維浮雕及線雕,切割,倒邊,鉆孔二維雕刻。

金屬類：銅,鋁。

其他：密度板,實木,塑料板等。

技術參數：

機器型號：TM-1325

工作行程：1300*2500*250m

雕刻深度：150mm

較大雕刻速度：3000mm/min

加工精度： 《0.05/300mm

主軸功率： 4.5kw

主軸轉速： 0-24000r/min

工作電壓： 380V 50HZ

刀具直徑： ∮3.175,∮6,∮12.7

冷卻方式： 水冷

XYZ導軌： 方形直線導軌

傳動方式：XY高精度齒輪齒條

Z軸滾珠絲杠傳動

重量： 2000kg

核心競爭力

★因?yàn)槲覀兪菑S家直銷,有專業的技術人員做售后,自收到機器的當天,請用戶主動索取廠里的技術售后電話,免費為您提供上門安裝,培訓,調試等服務,一直到您正常工作,確保您可以獨立加工生產；

★免費贈送您大量雕刻設計圖案,自購機之日起,終身享受軟件免費升級；

★自購機之日起,可以到我公司免費參加各種技術培訓班,讓您在技術上處于領先水平；

★售后服務方面:您有使用疑難或產品不能正常使用,我們將在接到用戶反饋后24小時內做出解決方案。

★較低價提供消耗品（可合同約定）,過保修期限的產品,更換配件成本價收費,降低您的各種成本！

廠家熱線：15621861266（微信） QQ：2986418693 聯系人：李經理

關于石材雕刻機而言，它的主軸和刀具還有電機相同，它就像是人的手臂，通過電機進行雕琢，同時又接受著雕琢?xí)r的壓力，這使得它有時分會呈現噪音，那么，我們?cè)撛鯓犹幚砟?下面，就讓濟南雕刻機廠家給你介紹一下吧。

1、淅瀝淅瀝的聲響：由堅持器與翻滾體振蕩、抵觸發作,不論潤滑脂種類怎樣都可能發作，接受力矩、負荷或徑向游隙大的時分更簡單發作.處理方法：提高堅持器精度、選用游隙小的軸承或?qū)S承施加預負荷、下降力矩負荷，削減裝置差錯、選用好的油脂。

2、嗡嗡的聲響：馬達無負荷工作是宣布類似蜂鳴一樣的聲響，且馬達發作軸向反常振蕩,開或關機時有嗡嗡聲。處理方法：多呈現在潤滑狀況欠好,以及在冬季且兩頭用球軸承的馬達，主要是軸調心功能欠好時，軸向振蕩影響下發作的一種不穩定的振蕩.

3、雜質音：由軸承或優質的清潔度引起,宣布一種不規則的反常音，聲響時有時無,時大時小,在高速電機上發作頻頻。處理方法：選用好的油脂、提高注脂前的清潔度、加強軸承的密封功能、提高裝置環境的清潔度。

4、噠噠的聲響：聲響頻率隨軸承轉速而變化，零件外表波紋度是引起噪音的主要原因。處理方法：改進軸承滾道外表加工質量，下降波紋度幅值、削減碰傷、批改游隙預緊力和合作，查看自由端軸承的工作，改進軸與軸承座的精度裝置方法.。

通過濟南雕刻機廠家的介紹，相信你現已知道怎樣處理石材雕刻機主軸的噪音問題了。

For the stone carving machine, it has the same motor spindle and the tool, it is like the human arm, were carved by the motor, but also accept the carve when the pressure, which makes it sometimes there is noise, so, how should we deal with it? Now, let Ji'nan engraving machine manufacturers introduced to you..

1, patter sound: adhere to the device and the tumbling body oscillation, conflict, no matter how kind of grease may accept time attack, torque, load or large radial clearance more simple attack. Method: to improve the accuracy of selection, adhere to the small clearance of bearing or pre load, the bearing load torque decreased cutting device, error, good selection of grease.

2, buzzing sound: motor load free work is to announce the same sound like bee sounding, and the motor attack is axially abnormal oscillations, and there is a buzzing sound when opening or closing. The method of treatment is mostly presented in an unstable condition when the lubrication condition is not good enough, and the motor with ball bearings at two ends in winter is mainly caused by axial oscillation when the axial adjustment function is not good enough.

3, impurity sound: caused by a bearing or high quality cleanliness, announcing an irregular abnormal sound. Sometimes, when the sound is not loud, the time is big and the time is small. It attacks frequently on high-speed motors. Treatment methods: select good grease, improve the cleanliness before the fat injection, strengthen the sealing function of the bearing, and improve the cleanliness of the device environment.

4, Da Da sound: sound frequency varies with the speed, the ripple of the appearance of a part is mainly caused by noise. The way of treatment is to improve the appearance quality of bearing raceway, reduce the amplitude of corrugation, reduce the bruise, correct the clearance and preload and cooperate, view the work of free end bearing, and improve the accuracy method of shaft and bearing seat.

Through the introduction of the Ji'nan engraving machine manufacturer, I believe you now know how to deal with the noise of the spindle of the stone engraving machine.
